Project Redwing (300B) is Go!

[Thermionic Idler]

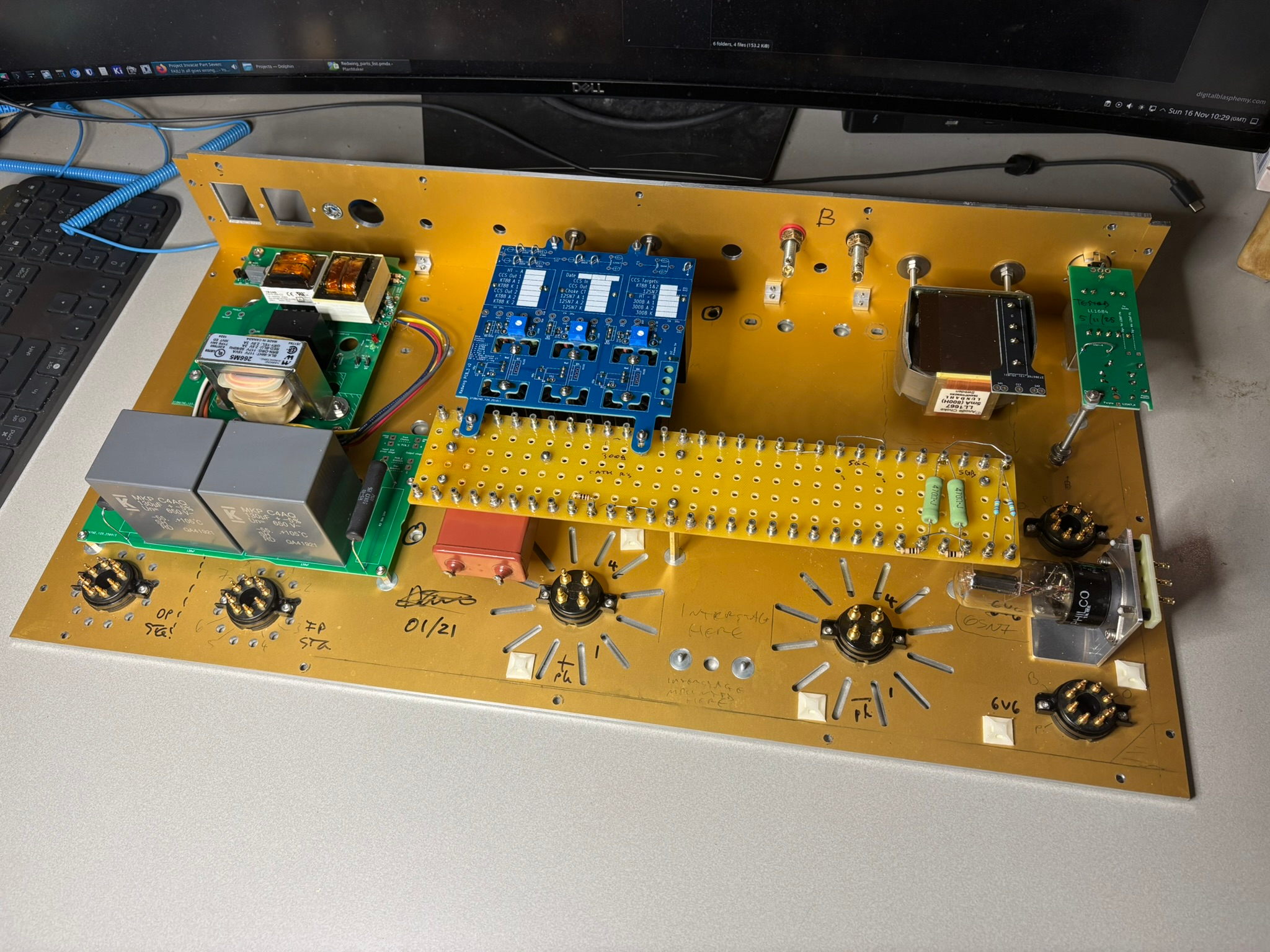

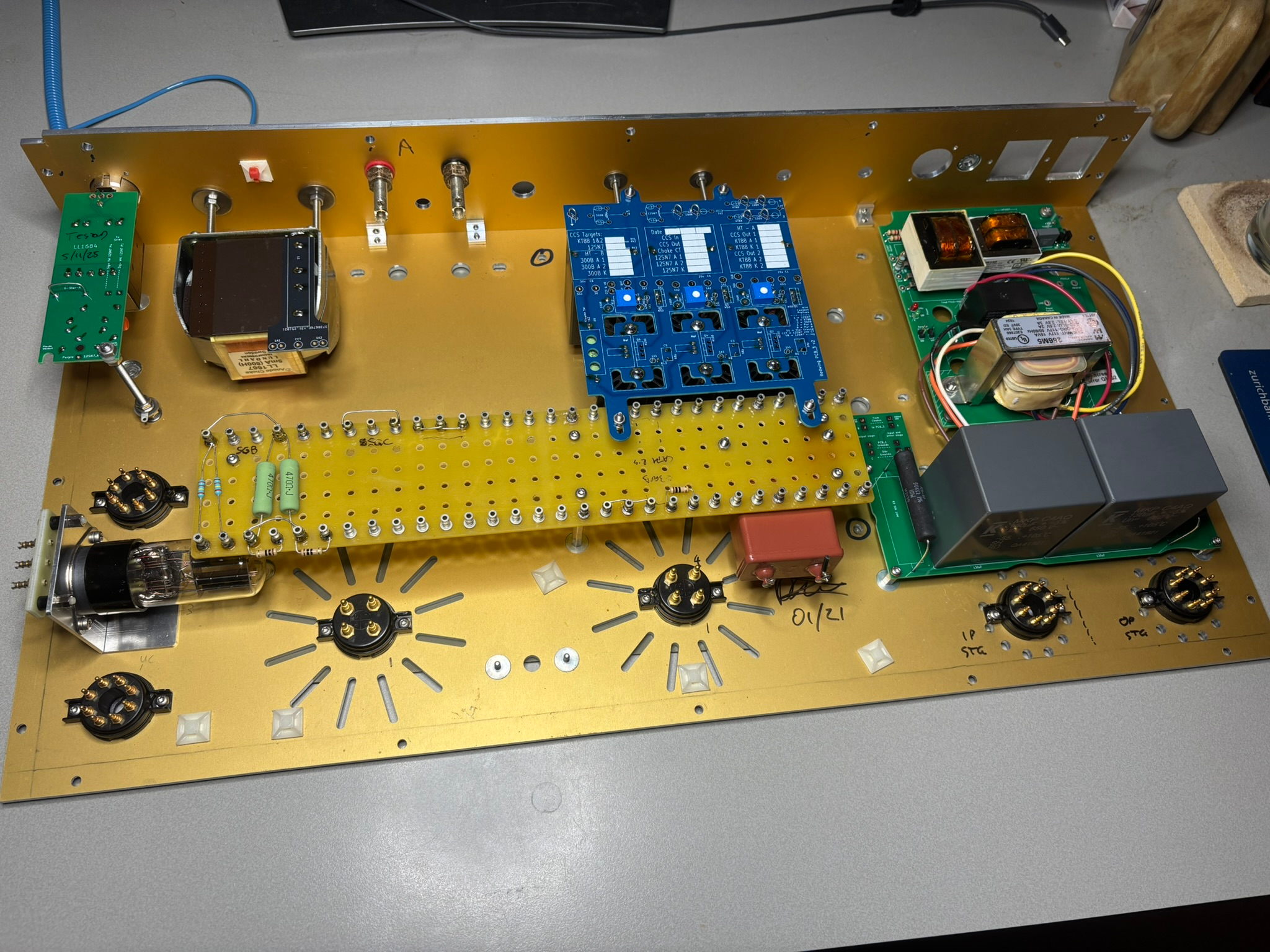

PCB's and tag boards now in place in each chassis, only thing missing is the interstage which fixes between the two 300B sockets, where the nulling pot used to be.

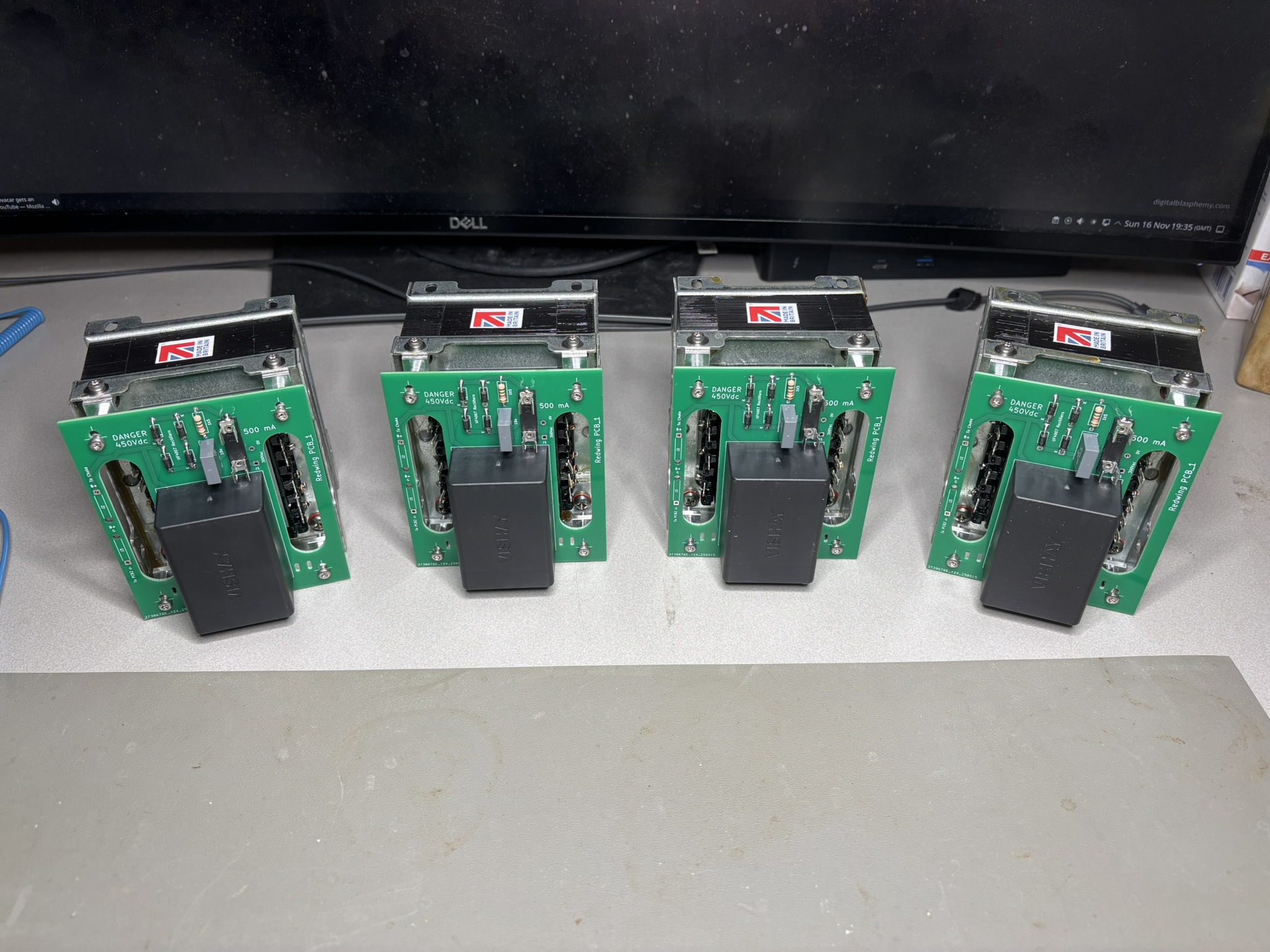

And the power supply first stage PCB's attached to each power transformer:

[Thermionic Idler]

Bit more progress - heater wiring now in place along with the mains connections.

I was able to verify that standby and remote power-up worked as expected, triggering the power relay and lighting up the heater on the 12SN7 at the other end of the chassis when turning on the pre-amp. The KT88 heaters will each be powered from the 6.3V secondaries on the HT transformers, so those are not connected yet.

I got the heater wiring from https://twisted-pair.co.uk/ - 20 and 22 AWG, comes in loads of different colours and saves having to twist the damned stuff yourself (probably my least favourite task). Sold as CAN bus cable but to me it looked perfect for the job. I used a 20AWG line to each 300B and KT88, 22AWG for the 12SN7 as its heater only draws 300mA.
